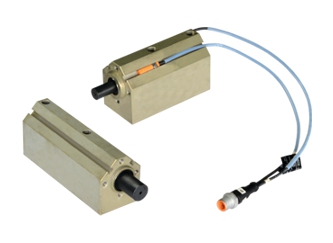

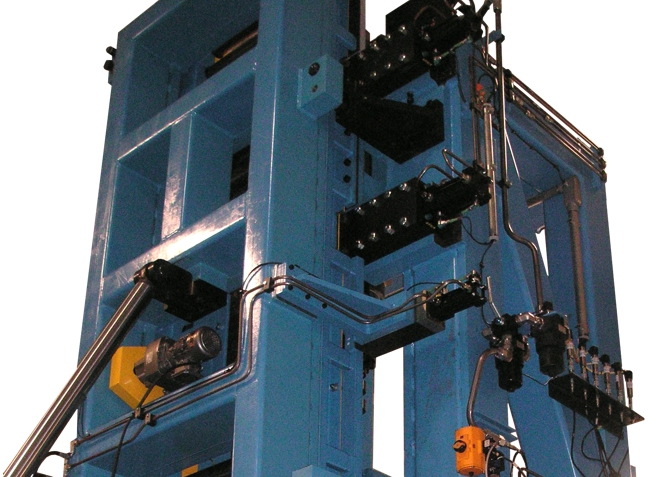

BP1 is a compact pneumatic lockout pin unit available in two pin diameters. With optional spring extend, an air loss mechanically triggers pin extension. All units offer multi-side mounting: base mount or pilot nose mount. Clearance receivers sold separately.

3/4" dia pin: 25mm, 50mm strokes
Load capacity: 750 lb.

1/2" dia pin: 25mm stroke (only)
Load capacity: 500 lb.

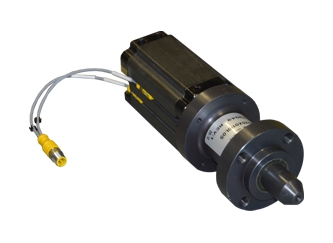

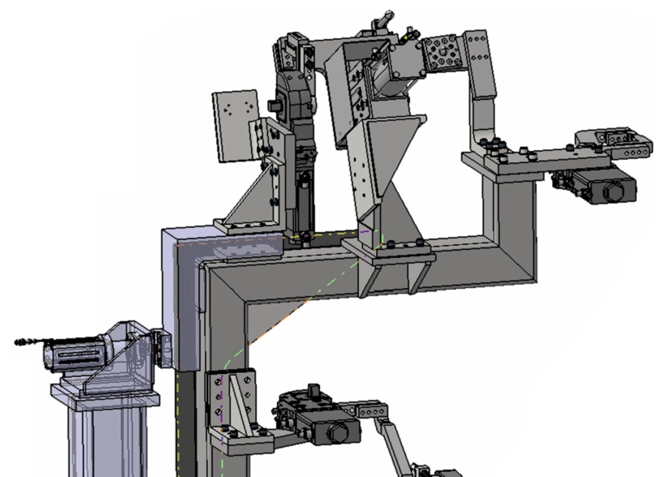

BP2 is a compact pneumatic lockout pin unit providing 2,500 lb lockout load capacity. Choice of receivers allows for positioning or safety lockout applications. Use with turntables, trunnion fixtures, dunnage carriers, indexers, and C-frame presses.

Stroke: 25mm, 50mm
Cylinder bore: 50mm
Load capacity: 2,500 lb.

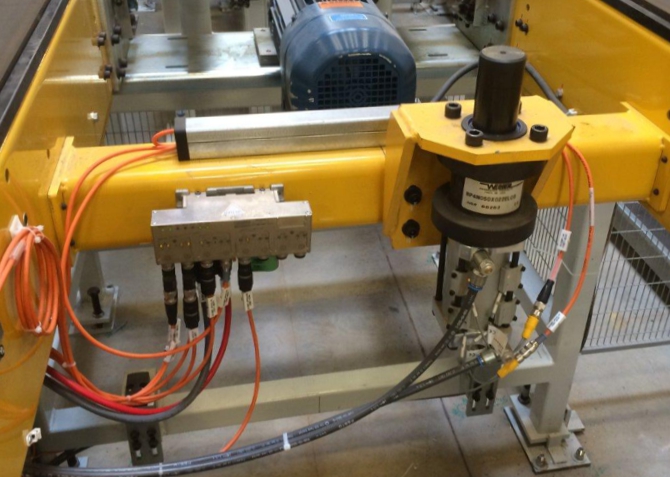

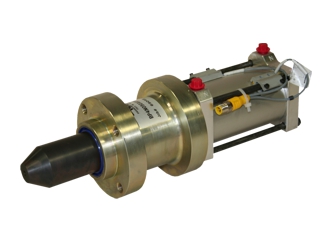

BP4 pneumatic lockout pin unit provides 5,000 lb lockout load capacity. Choice of receivers allows for positioning or safety lockout applications. Use with turntables, trunnion fixtures, dunnage carriers, indexers, and C-frame presses.

Stroke: 25mm, 50mm
Cylinder bore: 70mm
Load capacity: 5,000 lb.

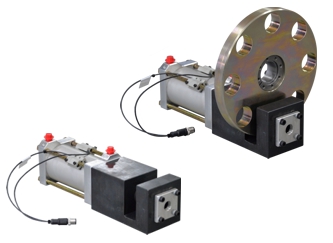

DS3 pneumatic lockout unit provides 10,000 lb lockout load capacity. Options include index disk, cylinder switch, and spring extend to guarantee engagement even in the absence of air pressure. Use with trunnion fixtures and 7th-axis robot slides.

Ram: 1-1/4" diameter
Cylinder bore: 70mm
Load capacity: 10,000 lb.

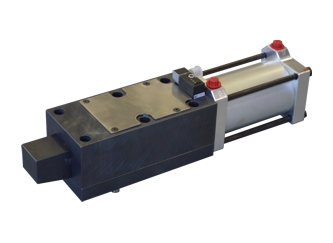

Wedge Lock (S01631) ram retracts inside unit's body, allowing tight positioning of backup. The 10° wedge provides secure location and easy retracting. Steel body maximizes side load capacity. Ideal for press station application: reduces deflection in lift & locate station

Optional integrated World Switch option for position sensing

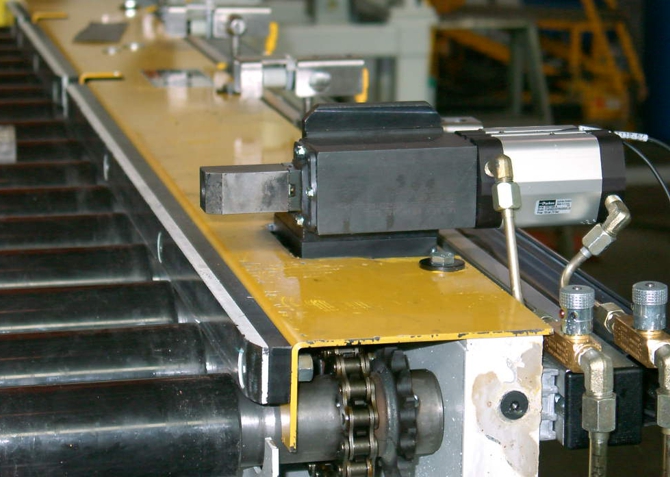

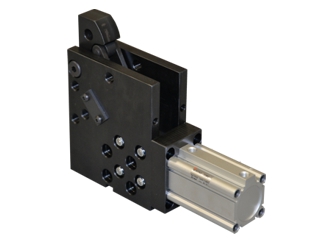

CMX is ideal for pallet stop use with free-standing accumulating conveyors. Mechanical lock will not fail with loss of power. Adjustable cushioned stopping. Finger tip manual override. Switches sense only the stop arm. Strong enough for zone conveyor emergency stops.

Four arm styles available.

Made to Order only.

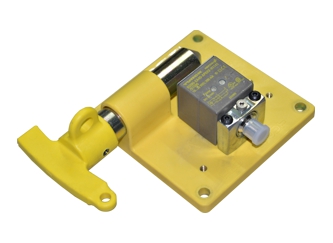

Tru-Lok is a manual P.E. Certified steel pin used in maintenance and safety lockout or as a homing pin. Saddle and handle are made of red or yellow GF polypropylene. Pepperl & Fuchs or Turck cube switch available.

Pin diameters: 12, 19, or 25mm
