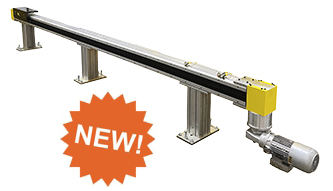

BES Belt Slides are standard presentation slides, (similar size to our model AES), driven with a high performance, steel reinforced polyurethane timing belt, and offers faster speeds and lower maintenance requirements than a screw driven unit. Constructed with an enclosed aluminum extruded frame, the BES Slides are an excellent cost savings alternative to expensive conveyors. Optional motors include a VFD gearmotor, a Clearpath® Servo motor, or a customer-specified motor. The BES is available in three styles: Single, Double, and Double Independent.

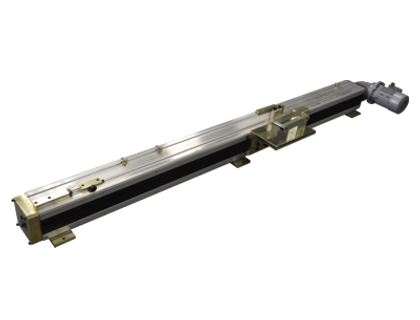

The Single style is designed with one extruded frame and one carriage providing a single axis of motion.

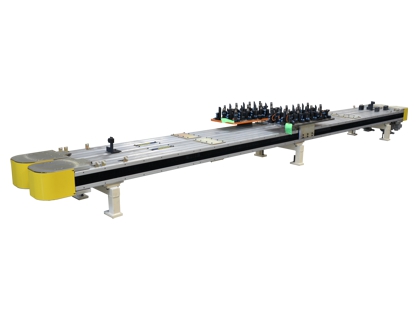

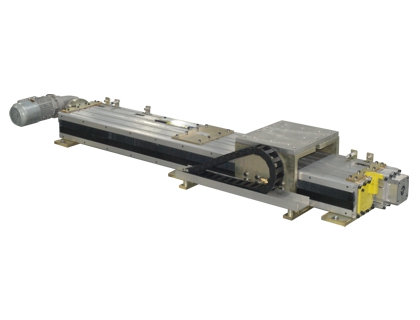

The Double style has a wider carriage and uses dual extruded frames and is guided by two sets of linear guides. Ideal for wider, offset loads.

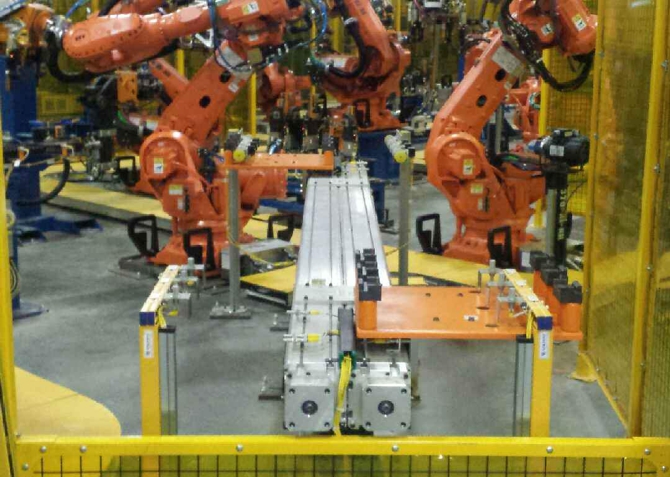

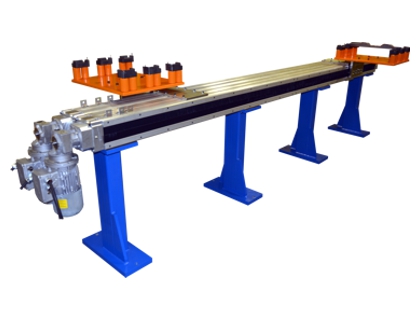

The Double Independent is designed with two carriages moving in opposite directions with each axis driven by its own motor. Ideal for boosting efficiency, such as in continuous load/unload applications.

Single load capacity: 360kg [793lb] centered
Max stroke: 8800mm
Double load capacity: 360kg [793lbs] centered
Max stroke: 7600mm
Double Independent load capacity: 360kg [793lbs]
Max stroke: 7600mm

See catalog for offset load information.

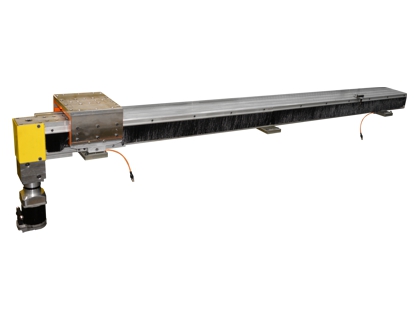

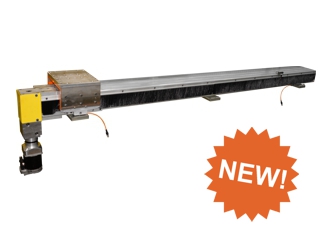

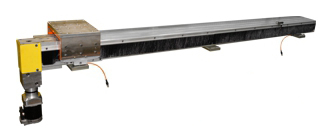

The new MES is a mini version of Welker's standard part presentation slide, for light duty applications. Belt-drive operation with servo actuator, or customer supplied motor. Alignment pin provided for homing verification.

Load capacity: 250 lb
Max stroke: 3720mm

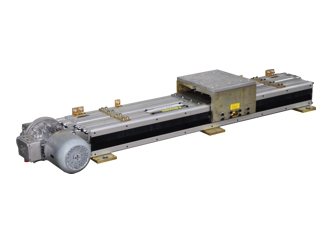

AES Slide has been upgraded to the new BES Slide - a belt-driven design that delivers faster speeds, easier installation, lower maintenance, and great cost savings compared to the screw-driven AES model.

AES Slides are now Made to Order only, with service parts available.
